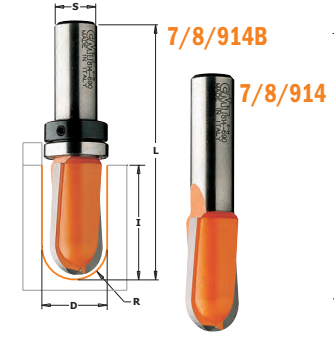

Фрезы пазовые галтельные CMT 7/8/914-914B

Нужна консультация?

Наши специалисты ответят на любой интересующий вопрос

Задать вопрос

D mm	I mm	L1 mm	Order NO. S = Ø6,35mm	Order NO. S = Ø6mm	Order NO. S = Ø8mm	R	Order NO. S = Ø12,7mm	Order NO. S = Ø12mm
3.2	9.5	50.8	814.032.11	714.032.11	914.032.11	•1,6
3.2	12.7	50.8	199.001.11			•1,6
6	12.7	50.8		714.060.11	914.060.11	•3
6	27	70		199.060.11		•3
6.4	12.7	50.8	814.064.11			•3,2
6.4	15.9	63.5				•3,2	814.564.11
6.4	25.4	63.5	199.008.11			•3,2
8	32	80			199.081.11	•4
9.5	6.4	50.8	814.095.11	714.095.11	914.095.11	4.75
9.5	25.4	66.7				4.75	814.595.11
12	35	80				•6		199.120.11
12.7	9.5	50.8	814.127.11B			6.35
12.7	9.5	50.8	814.127.11	714.127.11	914.127.11	6.35
12.7	31.7	76.2				•6,35	199.505.11
12.7	31.7	73				6.35	814.627.11	914.627.11
15.8	9.5	50.8			914.160.11B	8
15.8	9.5	50.8	814.160.11B			8
15.8	9.5	50.8	814.160.11	714.160.11	914.160.11	8
15.8	31.7	73				8	814.660.11
19	11.5	50.8	814.190.11B			9.5
19	11.5	50.8		714.190.11B		9.5
19	11.5	50.8	814.190.11	714.190.11	914.190.11	9.5
19	25	63.5			914.191.11	9.5
19	31.7	73				9.5	814.690.11B
19	31.7	73				9.5	814.690.11	914.690.11
25.4	16	73			914.254.11	12.7
25.4	31.7	73				12.7	814.754.11	914.754.11
31.7	18.5	58.8				16	814.817.11	914.817.11
